CÔNG TY TNHH LÊ NGÔ PHÁT

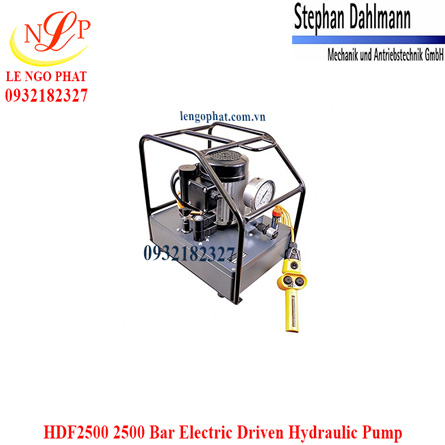

HDF2500 Electric Driven Hydraulic Pump
2500 Bar Hydraulic Test Pump
HDF2500 Electric Driven Hydraulic Pump
Product Code HDF2500
Maximum Pressure 2500 Bar
Minimum Pressure 30 Bar
Flow Rate (Low-High) 0.27 - 3.5 l/d
Electric Voltage 220V - 0,75 kW
Output Port Cejn 135 Fem. Coupler
Gauge 3000 Bar ø100mm
Cable Remote Control Available (24V DC)
Stepless Press. Adujst. Available
Noise Level 82 db (A)
Sizes (W-B-H) 45x32x43cm
Weight with Oil 38 Kg
Features
- Model Code HDF2500
- Flow rate 0.27 lpm at 2500 bar
- Flow rate 3.5 lpm at 30 bar
- Electric motor 220V – 0.75 kW
- 5m cable remote control 24V DC
- Stepless pressure adjustmen
- 3000 bar ø100mm gauge
- Oil output Cejn 135 coupler
- Portable lightweight, 38 kg
- Noise level 82 db (A)
- Protecting frame, oil sight glass
- Made in Germany, by Dahlmann GmbH
Technical Specifications
| Model | Unit | HDF 1500 | HDF 2000 | HDF 2500 |
| Working pressure | bar | 1500 | 2000 | 2500 |
| Pump type | ** | Two Speed / Single Acting | Two Speed / Single Acting | Two Speed / Single Acting |
| Flow at low pressure (up to 30 bar) | ltr | 3,5 | 3,5 | 3,5 |
| Flow at high pressure (up to 2500 bar) | ltr | 0,5 | 0,5 | 0,27 |
| Oil tank capacity | ltr | 5 | 5 | 5 |
| Pressure gauge | bar | 1600 | 2500 | 3000 |
| External stepless pressure option | *** | Available | ||
| Electric motor power | kW | 0.75 kW 50-60 Hz | ||
| Electrical voltage | V | 220V | ||
| Working noise | db | 82 | ||
| Control valve (2/2) | ** | 5 meter remote control | ||
| Oil output port | G | G1/4" CEJN 116 | G1/4" CEJN 125 | G1/4" CEJN 135 |
| Weight (oil included) | kg | 38 | ||
| Sizes (W x L x H ) | mm | 450 x 320 x 430 | ||
Features
- Model Code HDF2500
- Flow rate 0.27 lpm at 2500 bar
- Flow rate 3.5 lpm at 30 bar
- Electric motor 220V – 0.75 kW
- 5m cable remote control 24V DC
- Stepless pressure adjustmen
- 3000 bar ø100mm gauge
- Oil output Cejn 135 coupler
- Portable lightweight, 38 kg
- Noise level 82 db (A)
- Protecting frame, oil sight glass
- Made in Germany, by Dahlmann GmbH
Technical Specifications
| Model | Unit | HDF 1500 | HDF 2000 | HDF 2500 |
| Working pressure | bar | 1500 | 2000 | 2500 |
| Pump type | ** | Two Speed / Single Acting | Two Speed / Single Acting | Two Speed / Single Acting |
| Flow at low pressure (up to 30 bar) | ltr | 3,5 | 3,5 | 3,5 |
| Flow at high pressure (up to 2500 bar) | ltr | 0,5 | 0,5 | 0,27 |
| Oil tank capacity | ltr | 5 | 5 | 5 |
| Pressure gauge | bar | 1600 | 2500 | 3000 |
| External stepless pressure option | *** | Available | ||
| Electric motor power | kW | 0.75 kW 50-60 Hz | ||
| Electrical voltage | V | 220V | ||
| Working noise | db | 82 | ||
| Control valve (2/2) | ** | 5 meter remote control | ||
| Oil output port | G | G1/4" CEJN 116 | G1/4" CEJN 125 | G1/4" CEJN 135 |
| Weight (oil included) | kg | 38 | ||
| Sizes (W x L x H ) | mm | 450 x 320 x 430 | ||
Features
- Model Code HDF2500
- Flow rate 0.27 lpm at 2500 bar
- Flow rate 3.5 lpm at 30 bar
- Electric motor 220V – 0.75 kW
- 5m cable remote control 24V DC
- Stepless pressure adjustmen
- 3000 bar ø100mm gauge
- Oil output Cejn 135 coupler
- Portable lightweight, 38 kg
- Noise level 82 db (A)
- Protecting frame, oil sight glass
- Made in Germany, by Dahlmann GmbH
Technical Specifications
| Model | Unit | HDF 1500 | HDF 2000 | HDF 2500 |
| Working pressure | bar | 1500 | 2000 | 2500 |
| Pump type | ** | Two Speed / Single Acting | Two Speed / Single Acting | Two Speed / Single Acting |
| Flow at low pressure (up to 30 bar) | ltr | 3,5 | 3,5 | 3,5 |
| Flow at high pressure (up to 2500 bar) | ltr | 0,5 | 0,5 | 0,27 |
| Oil tank capacity | ltr | 5 | 5 | 5 |
| Pressure gauge | bar | 1600 | 2500 | 3000 |
| External stepless pressure option | *** | Available | ||
| Electric motor power | kW | 0.75 kW 50-60 Hz | ||
| Electrical voltage | V | 220V | ||
| Working noise | db | 82 | ||
| Control valve (2/2) | ** | 5 meter remote control | ||
| Oil output port | G | G1/4" CEJN 116 | G1/4" CEJN 125 | G1/4" CEJN 135 |
| Weight (oil included) | kg | 38 | ||
| Sizes (W x L x H ) | mm | 450 x 320 x 430 | ||
