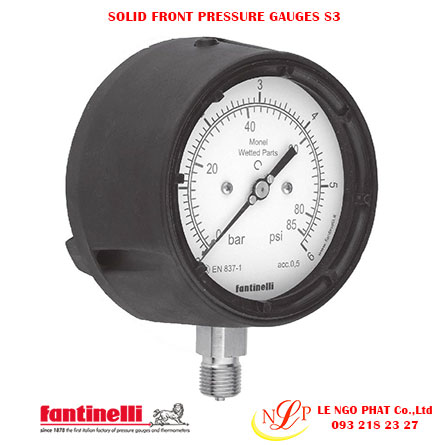

đồng hồ đo áp suất (SOLID FRONT S3)

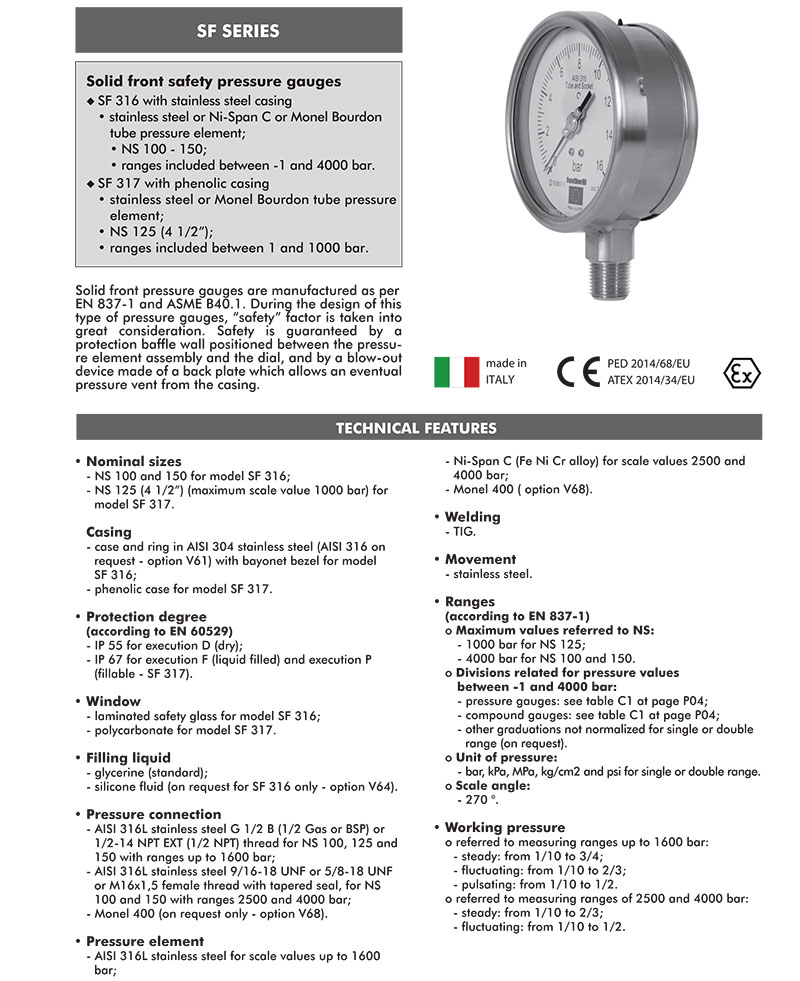

Solid front safety pressure gauges

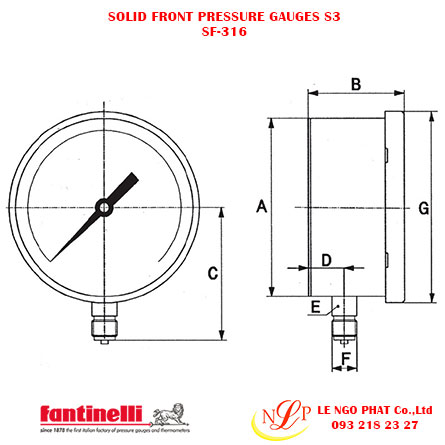

SF 316 with stainless steel casing

• stainless steel or Ni-Span C or Monel Bourdon tube pressure element;
• NS 100 - 150;
• ranges included between -1 and 4000 bar.

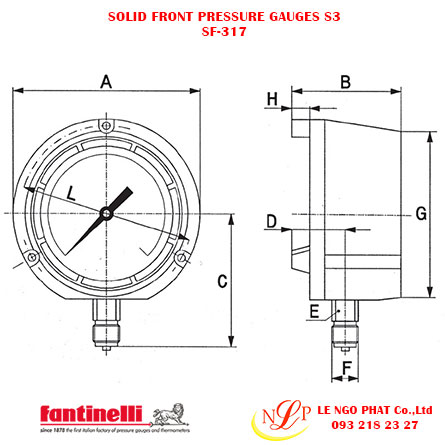

SF 317 with phenolic casing

• stainless steel or Monel Bourdon tube pressure element;
• NS 125 (4 1/2”);
• ranges included between 1 and 1000 bar.

Solid front pressure gauges are manufactured as per EN 837-1 and ASME B40.1. During the design of this type of pressure gauges, “safety” factor is taken into great consideration. Safety is guaranteed by a protection baffle wall positioned between the pressure element assembly and the dial, and by a blow-out device made of a back plate which allows an eventual pressure vent from the casing.
