đồng hồ đo áp suất

SOLID FRONT PRESSURE GAUGES S3

Solid front safety pressure gauges
SF 316 with stainless steel casing

• stainless steel or Ni-Span C or Monel Bourdon tube pressure element;
• NS 100 - 150;
• ranges included between -1 and 4000 bar.

SF 317 with phenolic casing

• stainless steel or Monel Bourdon tube pressure element;
• NS 125 (4 1/2”);
• ranges included between 1 and 1000 bar.

Solid front pressure gauges are manufactured as per EN 837-1 and ASME B40.1. During the design of this type of pressure gauges, “safety” factor is taken into great consideration. Safety is guaranteed by a protection baffle wall positioned between the pressure element assembly and the dial, and by a blow-out device made of a back plate which allows an eventual pressure vent from the casing.

ALL STAINLESS STEEL PRESSURE GAUGES:

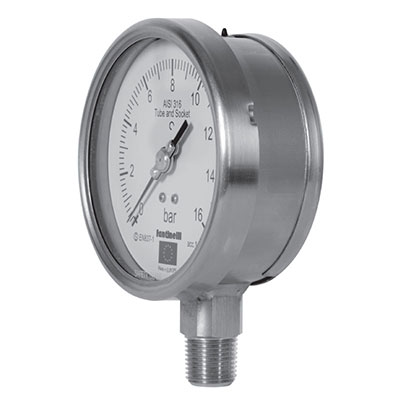

“All stainless steel” Bourdon tube pressure gauges

• watertight casing, dry or liquid filled execution;
• NS 63 - 100 - 150 - 200 - 250; (View SF serie for solid front execution)
• ranges included between -1 and 1000 bar.

SOLID FRONT PRESSURE GAUGES S3:

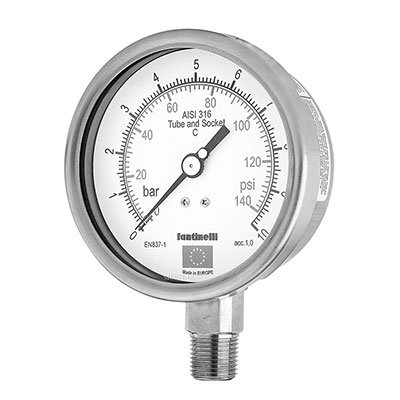

Solid front safety pressure gauges

SF 316 with stainless steel casing

• stainless steel or Ni-Span C or Monel Bourdon tube pressure element;
• NS 100 - 150;
• ranges included between -1 and 4000 bar.

SF 317 with phenolic casing

• stainless steel or Monel Bourdon tube pressure element;
• NS 125 (4 1/2”);
• ranges included between 1 and 1000 bar.

Solid front pressure gauges are manufactured as per EN 837-1 and ASME B40.1. During the design of this type of pressure gauges, “safety” factor is taken into great consideration. Safety is guaranteed by a protection baffle wall positioned between the pressure element assembly and the dial, and by a blow-out device made of a back plate which allows an eventual pressure vent from the casing.

BRASS INTERNALS PRESSURE GAUGES SS CASE:

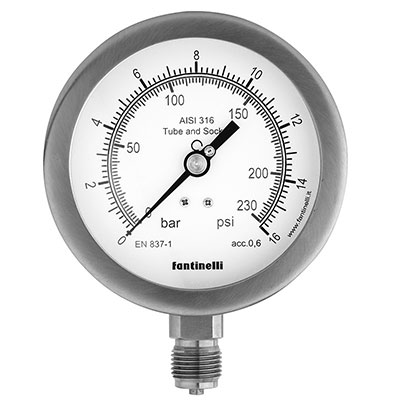

Bourdon tube pressure gauges for general purpose

• watertight casing, dry or liquid filled execution;
• NS 40 - 50 - 63 - 80 - 100;
• ranges included between 1 and 600 bar.

These instruments are manufactured for all those industry’s sectors which require highest quality pressure gauges with stainless steel casing.

PRESSURE GAUGES WITH SQUARE CASE:

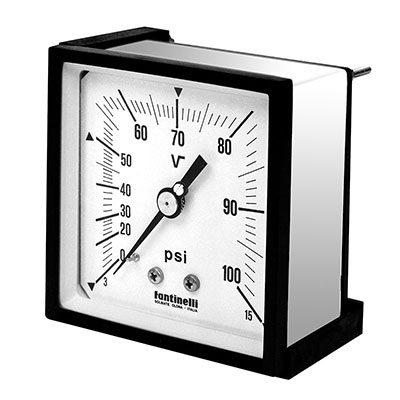

Square casing pressure gauges

• stainless steel C-Bourdon tube pressure element;
• NS 96x96 - 144x144;
• ranges included between -1 and 600 bar.

BRASS PRESSURE GAUGES:

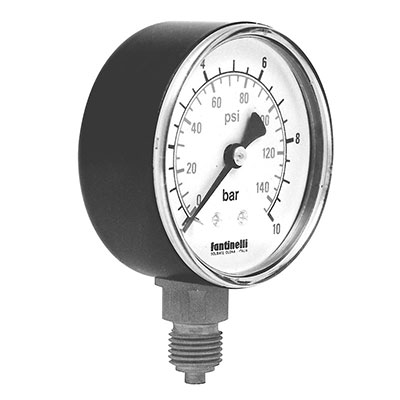

Standard Bourdon tube pressure gauges

• copper alloy pressure element assembly;
• DN 40 - 50 - 63 - 80 - 100;
• ranges included between -1 and 400 bar.

Xuất xứ: Fantinelli - Made in Italy.

Bảo hành: 12 tháng

Chứng nhận xuất xứ hàng hóa đi kèm (CO)

Chứng nhận chất lượng sản phẩm đi kèm (CQ).

Thời gian giao hàng: Hàng có sẵn kho số lượng lớn.
