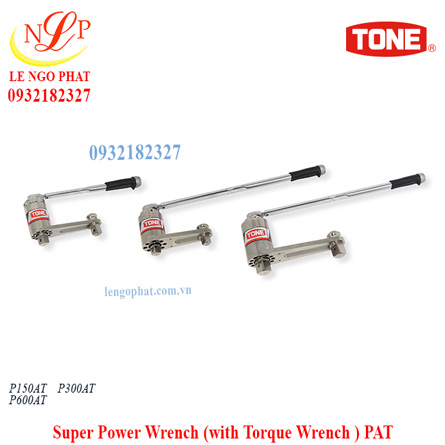

Super Power Wrench (with Torque Wrench )

They're the set items with which Torque Wrench for input was combined in Super Power Wrench .
※ Use socket: One for impact.

With Inspection cert. , (only new-style Super Power Wrench )
With Calibration cert. , (only Torque Wrench )
With instruction manual

Precautions for use

Torque Wrench can't be used by the left revolution (counterclockwise)./Don't use torque wrench to turn power wrench counter-clockwise.
Please don't input Super Power Wrench more than biggest input torque ./Don't apply input torque to super power wrench exceeding rated max input torque.

Giá: 0932182327

Mã sản phẩm: PAT

Model: PAT

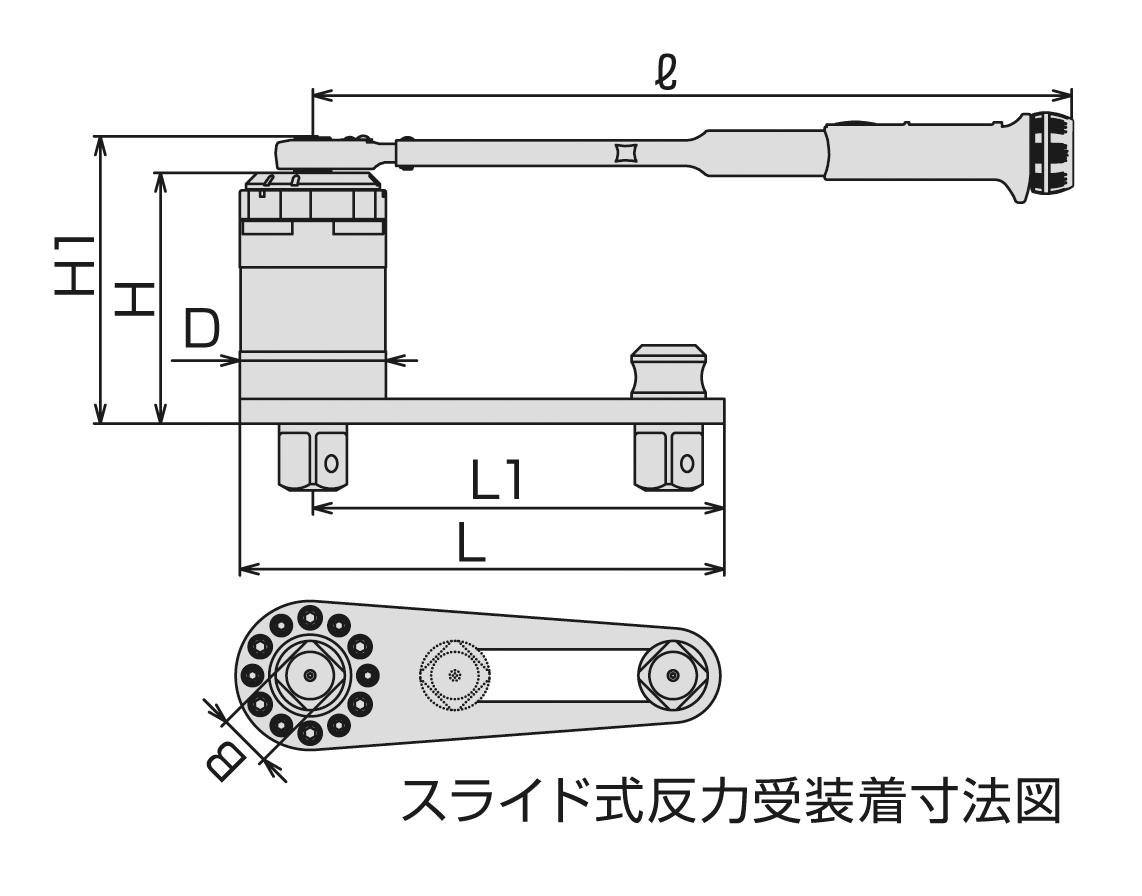

Models	Contents	Minimum torque capacity (Nm)	The upper limit torque capacity (Nm)	Input torque area (Nm)_INPUT	dimensions (mm)B	dimensions (mm)D	dimensions (mm)H	dimensions (mm)H1	dimensions (mm)L	dimensions (mm)L1	carton	weight (g)	MSRP in JP
P150AT	P150A and T4MN100	300	1500	20-65	25.4	71	122	139	235	200	2	4900	Open price
P300AT	P300A and T4MN200	600	3000	60-180	25.4	84	138	158	242	200	2	7900	Open price
P600AT	P600A and T4MN300	1200	6000	60-255	38.1	96	172	193	348	300	2	12500	Open price

※ The numerical value of the output in the table and the input torque area is the numerical value when using Torque Wrench in contents .

※ Output in case of a tightening outrigger will be the one with which accuracy in Torque Wrench was seasoned in repeat accuracy of the Super Power Wrench body by the same conditions.

※ weight is a total of the body, the slide system reaction arm and Torque Wrench .

Models	Contents	Minimum torque capacity (Nm)	The upper limit torque capacity (Nm)	Input torque area (Nm)_INPUT	dimensions (mm)B	dimensions (mm)D	dimensions (mm)H	dimensions (mm)H1	dimensions (mm)L	dimensions (mm)L1	carton	weight (g)	MSRP in JP
P150AT	P150A and T4MN100	300	1500	20-65	25.4	71	122	139	235	200	2	4900	Open price
P300AT	P300A and T4MN200	600	3000	60-180	25.4	84	138	158	242	200	2	7900	Open price
P600AT	P600A and T4MN300	1200	6000	60-255	38.1	96	172	193	348	300	2	12500	Open price

※ The numerical value of the output in the table and the input torque area is the numerical value when using Torque Wrench in contents .

※ Output in case of a tightening outrigger will be the one with which accuracy in Torque Wrench was seasoned in repeat accuracy of the Super Power Wrench body by the same conditions.

※ weight is a total of the body, the slide system reaction arm and Torque Wrench .

Models	Contents	Minimum torque capacity (Nm)	The upper limit torque capacity (Nm)	Input torque area (Nm)_INPUT	dimensions (mm)B	dimensions (mm)D	dimensions (mm)H	dimensions (mm)H1	dimensions (mm)L	dimensions (mm)L1	carton	weight (g)	MSRP in JP
P150AT	P150A and T4MN100	300	1500	20-65	25.4	71	122	139	235	200	2	4900	Open price
P300AT	P300A and T4MN200	600	3000	60-180	25.4	84	138	158	242	200	2	7900	Open price
P600AT	P600A and T4MN300	1200	6000	60-255	38.1	96	172	193	348	300	2	12500	Open price

※ The numerical value of the output in the table and the input torque area is the numerical value when using Torque Wrench in contents .

※ Output in case of a tightening outrigger will be the one with which accuracy in Torque Wrench was seasoned in repeat accuracy of the Super Power Wrench body by the same conditions.

※ weight is a total of the body, the slide system reaction arm and Torque Wrench .
