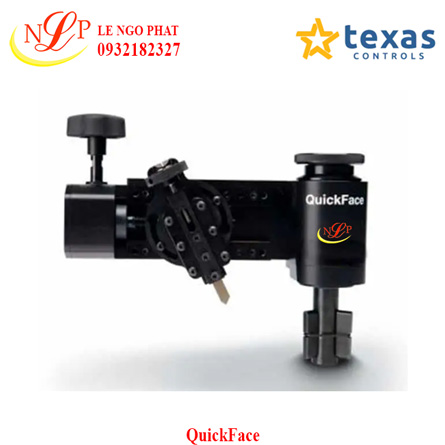

QuickFace

QuickFace makes refacing easy

Every day we’re presented with hundreds of situations where flanges that need to be refaced are in awkward or even dangerous locations. Pipes can be located at the top of a refinery installation or miles away from the nearest power line, without room to move.

Engineers can rely on all the accuracy and performance of Hydratight’s bigger air and electric powered tools in a lightweight and extremely portable format. A simple and cost effective solution with hi-tech design, the QuickFace turns a two man operation with heavy equipment, compressors and portable generators into a one man job.

Light on weight, not on features

The QuickFace tool itself weighs only 6.8kg (15lbs), which means it’s easy to carry, yet can still reface flange surfaces on pipes from 25.4mm (1in) up to 152.4mm (6in) with ease. As you’d expect from Hydratight, pared down weight means no loss of performance. The system has interchangeable lead screws that make it suitable for resurfacing damaged raised-face or lens-ring joint flanges to the high safety standards required.

Plus QuickFace operation couldn’t be simpler; after selecting the correct lead screw for the operation, the tool body is inserted in the pipe end and centres itself with adjustable locators to provide truly concentric operation.
The tool arm is then rotated by hand using a worm-gear mechanism to provide a perfect spiral “gramophone” finish. The tool can be adjusted with a calibrated slide to define cut depth and the correct finish.

Small and portable enough to be a permanent addition to your equipment range, the QuickFace is the perfect solution to all of your small diameter facing problems.
