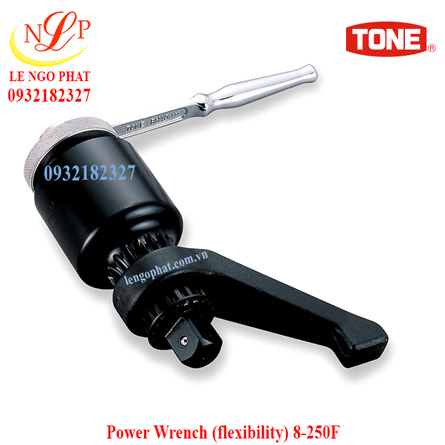

A wrench with the double power organization suitable for tightening of large bolt nut and reducing work.
It can be a little power and also output amount torque by the small operational society by the double power organization.
I have reaction arm which slides in at most 20 mm of width .
Add a help pipe of contents (I loosen and use it exclusively.), and please don't input excessively./Extension pipe is attached to strengthen input force only at the time of loosening operation. Never use the pipe for tightening operation, in order to prevent over-loading which might cause Accident or failure.

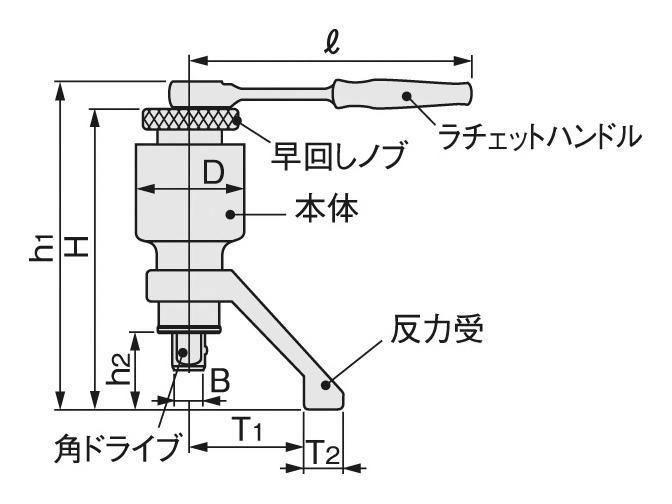

| Models | Minimum torque capacity (N m) | The upper limit torque capacity (N m) | Biggest input torque (Nm)_MAX. INPUT. | Case dimensions (mm) w | Case dimensions (mm) d | Case dimensions (mm) h | dimensions (mm)B | dimensions (mm)D | dimensions (mm)H | dimensions (mm)T1 | dimensions (mm)T2 | magnification | Qty./Carton | weight (g) | MSRP in JP |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 8-250F | 0 | 2500 | 278 | 400 | 195 | 95 | 25.4 | 88 | 249-269 | 95 | 32 | About 9 (only the time of newness) | 1 | 6000 | Open price |
※ square Drive in input part is 12.7mm.
※ Please use "impact socket " for a socket.
|
Ratchet handle (RH40) |
1 |
| Help pipe (I loosen and use it exclusively.) (320H) | 1 |
| Instruction manual | 1 |
| Metal case | 1
|
