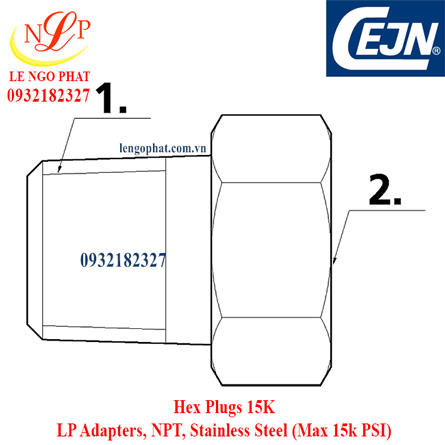

Hex Plugs 15K

LP (Max 15k PSI)Adapters

Industry standard adapters for 1/8" to 1" NPT. Compact designs, made from NACE certified AISI 316L / EN1.4404 stainless steel for maximum life.

Giá: 0932182327

Mã sản phẩm: Hex Plugs 15K

Model: 199502224, 199502225, 199502226, 199502227, 199502228, 199502229

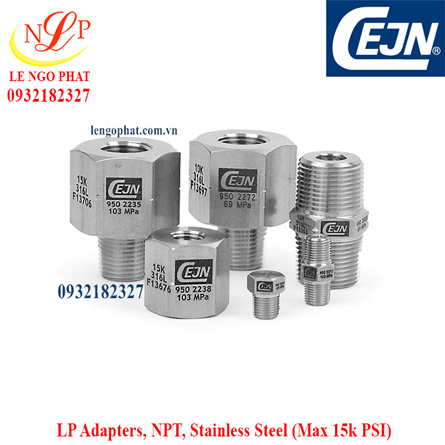

LP Adapters, NPT, Stainless Steel (Max 15k PSI)
Part No.	Category	Rec. torque (Nm)	Connection 1	Connection 2	Max working pressure
199502224	Hex Plugs 15K	23 Nm	1/8" NPT	-	103.0 MPa
199502225	Hex Plugs 15K	29 Nm	1/4" NPT	-	103.0 MPa
199502226	Hex Plugs 15K	34 Nm	3/8" NPT	-	103.0 MPa
199502227	Hex Plugs 15K	61 Nm	1/2" NPT	-	103.0 MPa
199502228	Hex Plugs 15K	102 Nm	3/4" NPT	-	103.0 MPa
199502229	Hex Plugs 15K	163 Nm	1" NPT	-	103.0 MPa
