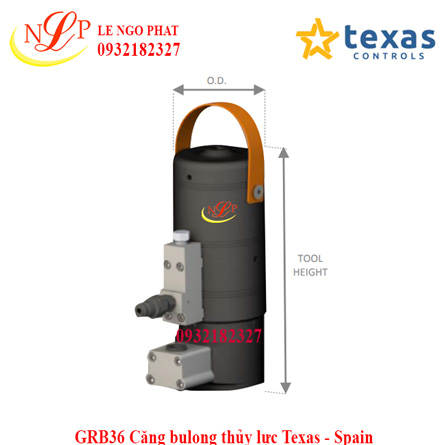

GRB36 Căng bulong thủy lực Texas - Spain

GRB36 Căng bulong thủy lực Texas - Spain

MAIN FEATURES
• SAFETY: PD tensioners incorporates the same
safety features than the blade tensioners:
- Anti-projection device in case of a puller bar
failure.
- Positive Stop.
• SLIM DESIGN: Double decker type ensures
high loads in limited radial clearance
applications.
• GEAR BOX: We have the most reliable gear
box in the market.
• Fastest Oil return, avoiding unnecesary time
wasting.

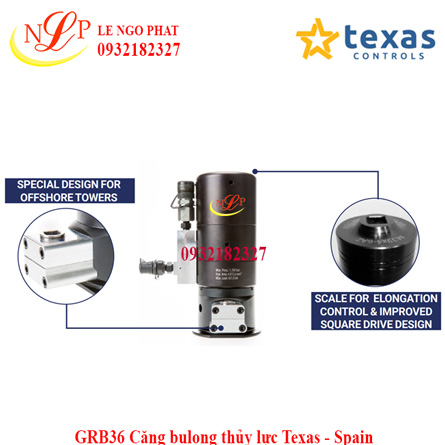

• LASER ENGRAVED SCALE: Allows an easy
elongation control by the user.
• Improved square drive design.
• Different Thread Tolerances available.
• Different nut sizes and types available.

Giá: 0932182327

Mã sản phẩm: GRB36

Model: GRB36

Model

Stud Size

Tool Load Capacity

Hydraulic Pressure Area

Effective

O.D. (A)

Tool Height (H)

Max. Stroke

Stud protrusion (mm)

Complete Tool Weight

Metric kN mm2 mm mm mm Min Max kg

GRB36	M36	657,8	4.872,61	98	258	15	143	242	10,3
	M36- OFFS	657,8	4.872,61	98	258	15	143	242	10,3
GRB42	M42	877,9	6.502,96	105	259	15	178	243	11,3
PD36	M36	579,9	3.866,28	98	258	15	143	242	10,3
PD42	M42	787,6	5.250,56	105	259	15	178	243	11,3
PD48	M48	1.060,7	7.071,16	125	258	15	145	240	17,0
PD48	M56	1.461,6	9.744,14	141	264	15	155	243	25,0
