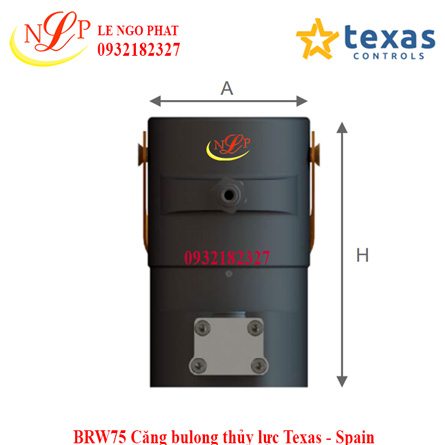

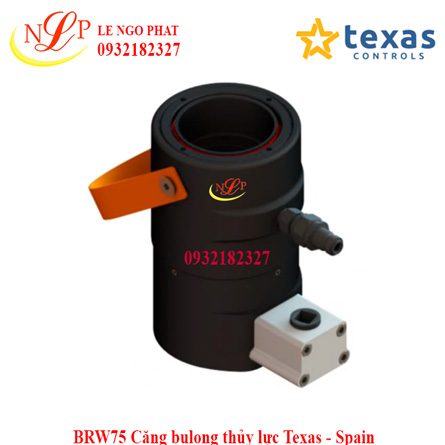

BRW75 Căng bulong thủy lực Texas - Spain

BRW75 Căng bulong thủy lực Texas - Spain

MAIN FEATURES
• Max. working pressure 1.350 / 1.500 bar
• Max. stroke 10 – 20 mm
• High pressure quick connect couplings, with no o-rings needed, ensure better performance.
• Max Stroke indicator.
• Belleville spring return system.
• Metric & special threads are available under request.

Giá: 0932182327

Mã sản phẩm: BRW75

Model: BRW75

Model

Stud Size

Max. Pressure

Tool Load Capacity

Hydraulic Pressure Area

Effective

O.D. (A)

Tool Height (H)

Max. Stroke

Stud protrusion over

flange (mm)

Complete Tool Weight

Metric bar kN mm2 mm mm mm Min Max kg

BRW75	Williams 75 ksi	1.350	473	3499	108	179	10	210	-	7,3
BRW75 LS	Williams 75 ksi	1.350	473	3.499	108	219	20	250	-	9,7
BRW150	Williams 150 ksi	1.350	763	5.648	123	202	10	240	-	10,7
BRW150 LS	Williams 150 ksi	1.350	763	5.648	123	242	20	280	-	13,9
BR2 LS	M39	1.500	654	4.359	109	210	15	250	-	9,2
